Apollo Command and Service Modules and Launch Escape System
Apollo Program Summary Report
(April 1975)

Command Module Interior
from Apollo Training Manual"Apollo Spacecraft & Systems Familiarization"(March 13, 1968)

Command Module Interior
from Apollo Training Manual"Apollo Spacecraft & Systems Familiarization"(March 13, 1968)

Command Module Main Control Panel
from Apollo Operations Handbook Block II Spacecraft
(October 15, 1969)

Guidance Navigation and Control Systems
from Apollo Training Manual"Apollo Spacecraft & Systems Familiarization"(March 13, 1968)

Command and Service ModuleEngine Locations
from Apollo Training Manual"Apollo Spacecraft & Systems Familiarization"(March 13, 1968)

Stabilization & Control System
from Apollo Training Manual"Apollo Spacecraft & Systems Familiarization"(March 13, 1968)

Apollo Spacecraft/LM Adapter
from Apollo Training Manual"Apollo Spacecraft & Systems Familiarization"(March 13, 1968)

Command/Service Module /Lunar Module Comparison
from Apollo Training Manual
Apollo Spacecraft & Systems Familiarization(March 13, 1968)

Lunar Module Exterior
from Apollo Program Press Information Notebook(1972)

Lunar Module Landing Configuration
from Apollo Program Summary Report(April 1975)

Lunar Module Controls and Displays
from Apollo Spacecraft News Reference

Lunar Module Ascent Stage
Apollo Program Press Information Notebook (1972)

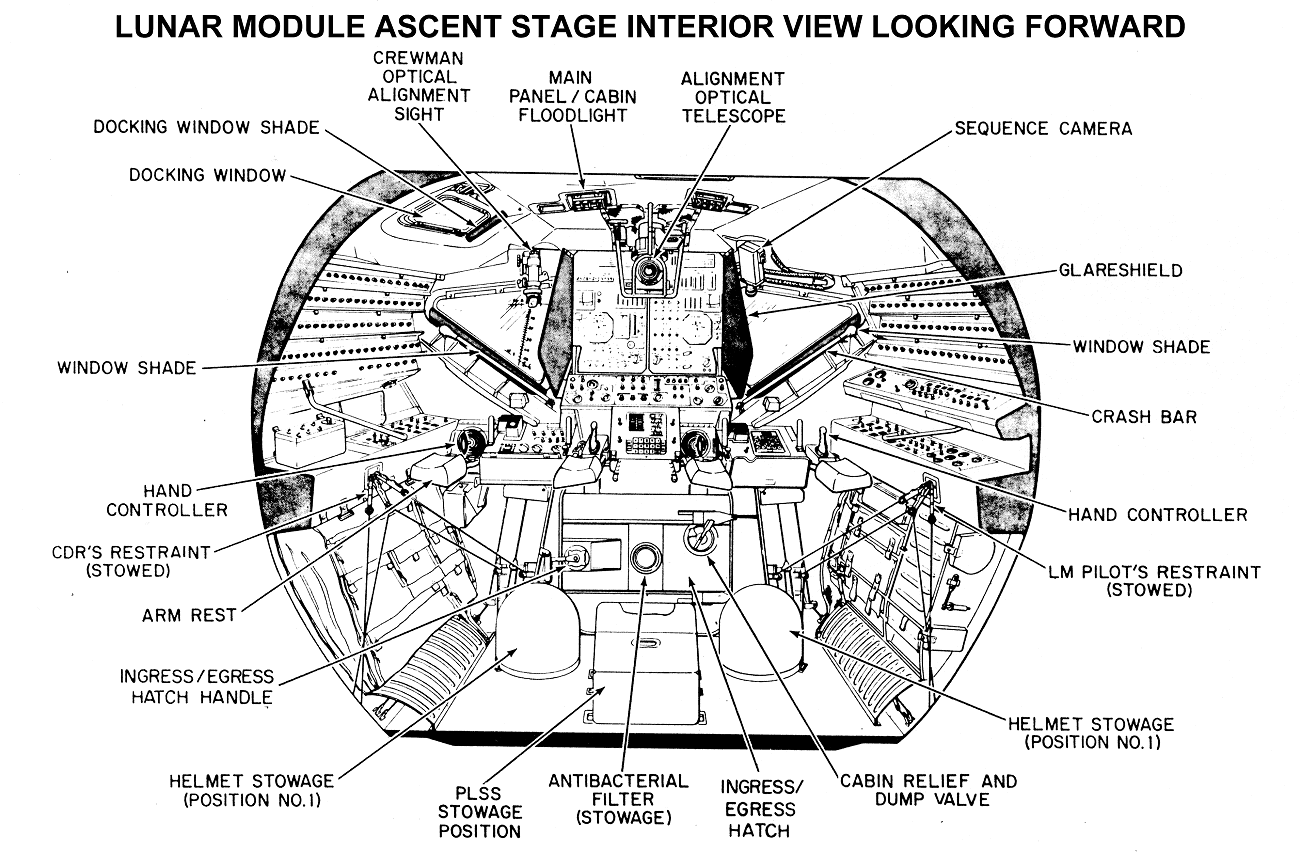

Lunar Module Ascent Stage Interior Looking Forward
Apollo Program Press Information Notebook
(1972)

Lunar Module Ascent StageInterior Looking Aft
Apollo Program Press Information Notebook  (1972)

Lunar Module Descent Stage
from Apollo Program Press Information Notebook (1972)
NOTE:
All texual and graphical elements originally published by NASA.
This republished content has not been authorized or endorsed by NASA.
Lunar Module Controls and Displays
